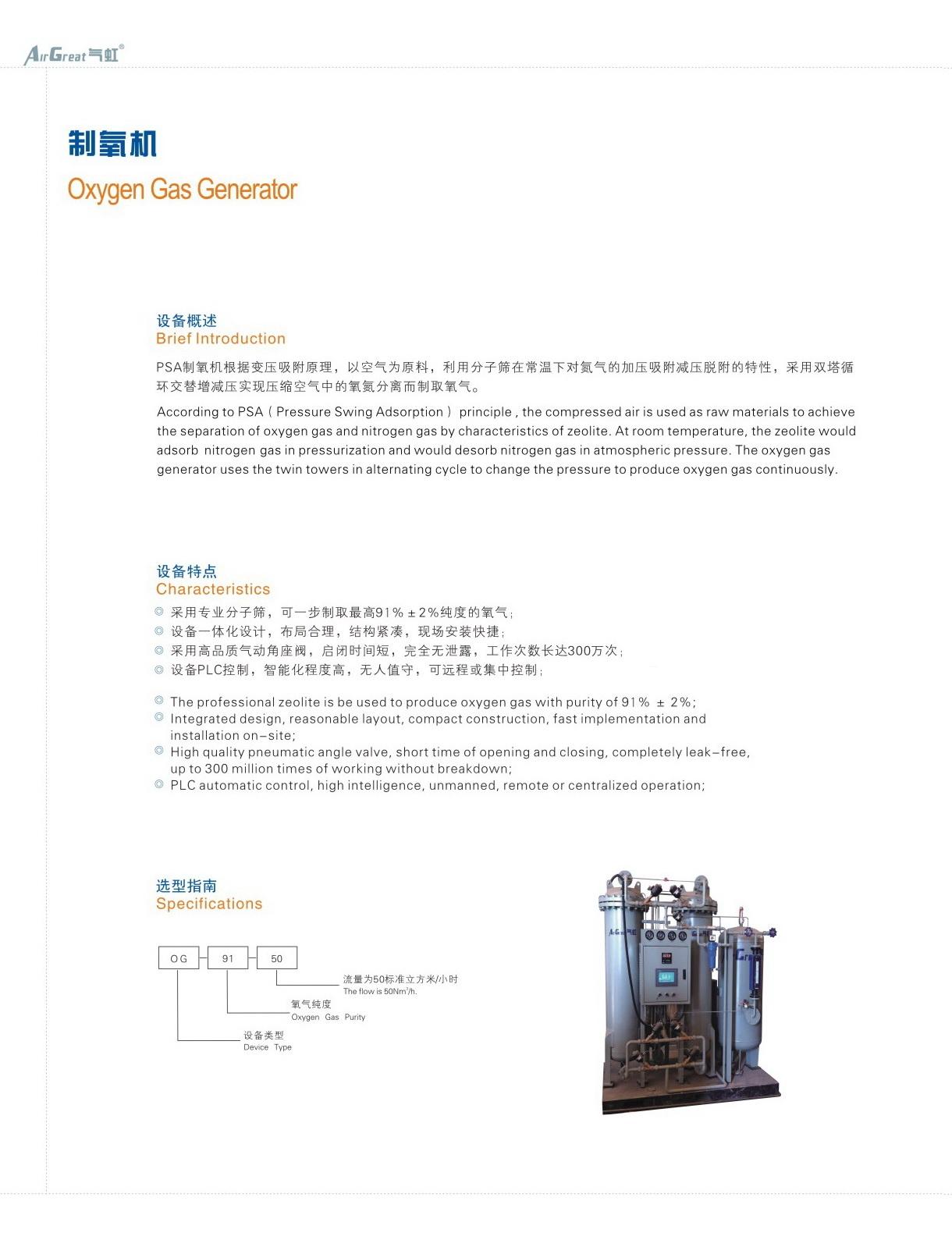

Brief Introduction

According to PSA ( Pressure Swing Adsorption ) principle，​​​the compressed air is used as raw material to achieve the separation of oxygen gas and nitrogen gas by characteristics of zeolite. At room temperature，the zeolite would adsorb nitrogen gas in pressurization and would desorb nitrogen gas in atmospheric pressure. The oxygen gas generator uses the twin towers in alternating cycle to change the pressure to produce oxygen gas continuously.

Characteristics

• The professional zeolite is be used to produce oxygen gas with purity of 91% ± 2%；
• Integrated design，reasonable layout，compact constrution，fast implementation and installation on - site；
• High quality pneumatic angle valve，short time of opening and closing，completely leak - free，up tp 300 million times of working without breakdown；
• PLC automatic control，high intelligence，unmanned，remote，or centralized operation.

Specifications
